| 品牌飞宇 | 有效期至长期有效 | 最后更新2019-08-16 16:37 |
| Channel Wavelength（nm）ITU Grid | Channel Spacing (GHz)100 / 200 | Insertion Loss (dB)≤1.8 ≤3.0 ≤4.5 |
| 浏览次数72 |

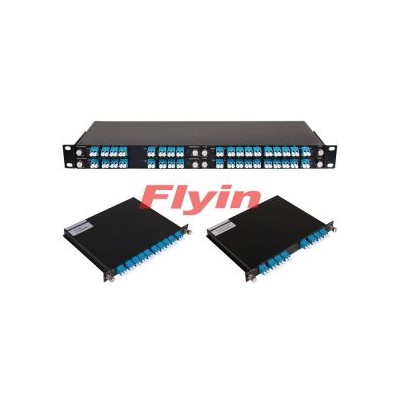

飞宇供应波分复用器价格实惠质量可靠
| Features | Applications |
| Low Insertion Loss | Channel Add/Drop |
| Wide pass band | DWDM Network |
| High channel | Wavelength Routing |
| High stability and reliability | Fiber Optical Amplifier |
| Epoxy free on optical path | CATV Fiberoptic System |
Package Dimension
Performance Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength（nm） | ITU Grid | ||||||
| Channel Spacing (GHz) | 100 / 200 | ||||||
| Channel Passband (@-0.5dB bandwidth (nm) | >0.3 | ||||||
| Insertion Loss (dB) | ≤1.8 | ≤3.0 | ≤4.5 | ||||
| Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple (dB) | 0.3 | ||||||
| Isolation（dB） | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||
| Polarization Dependent Loss (dB) | <0.1 | <0.1 | <0.15 | ||||
| Polarization Mode Dispersion（ps） | <0.1 | ||||||
| Directivity (dB) | ＞50 | ||||||
| Return Loss（dB） | ＞45 | ||||||
| Maximum Power Handling (mW) | 300 | ||||||
| Opterating Temperature (℃) | -5~+75 | ||||||
| Storage Temperature (℃) | -40~+85 | ||||||
| Package dimension (mm) | L432（482.6）xW250*H44 or Specify | ||||||
1、Above specifications are for devices without connector.
2、Specifications may change without notice.
